How to Install an Ethernet over Coax Adapter: Pinout, Tools, and Testing

Posted on by

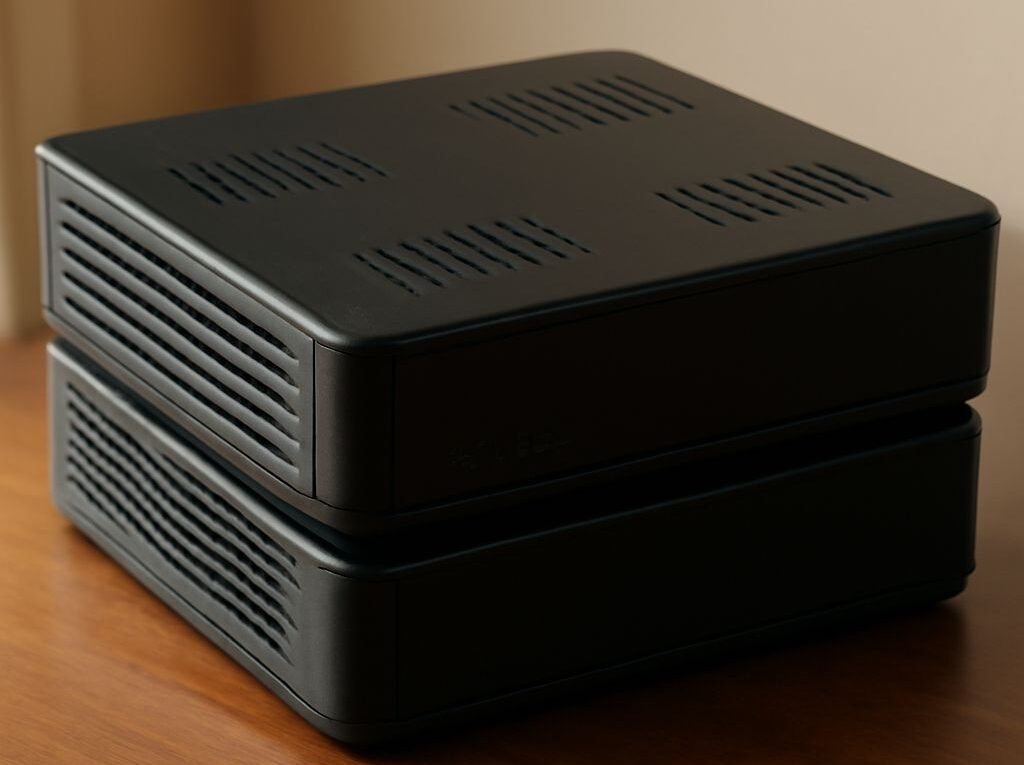

An Ethernet over coax adapter creates an active network bridge between a coaxial cable run and an Ethernet network. It is not a passive plug or wiring converter: each endpoint requires a compatible, powered adapter, and the coax path must support the adapter’s signaling standard, frequency range, and topology.

Reliable installation has two separate tasks. First, qualify the coax path, splitters, competing services, and adapter pair. Then build and test the RJ45 cables before verifying link negotiation, network addressing, and real throughput across the complete converted connection.

Choose an Ethernet over Coax Adapter for Your Coax Path

Choose adapters as a matched system whenever possible. Common technologies include MoCA and G.hn, but adapters using different standards generally do not communicate with one another. Check the manufacturer’s compatibility list, supported coax type, maximum rated bandwidth, and approved splitter frequencies before purchasing.

Inspect the coax route from the intended source endpoint to each remote room. Most residential installations use 75-ohm coax, such as RG6 or RG59. RG6 usually provides better loss performance, especially over longer runs and higher-frequency MoCA signals. RG59 may work on a short, clean path, but its loss and shielding can limit performance. Replace damaged cable, loose F-connectors, corroded fittings, and improvised joins before connecting the adapters.

Identify every device already using the coax:

  • Cable television or broadband service: Some Ethernet-over-coax systems can coexist with cable service, while others require a compatible filter or a dedicated coax segment.
  • Satellite television: Satellite systems can use different frequencies and may place DC power on the coax. Do not assume that a standard MoCA or G.hn adapter can share this path.
  • Over-the-air antenna service: Antenna amplifiers, power injectors, and filters can block or interfere with adapter signals.
  • Existing MoCA or other networking equipment: An existing adapter or bridge may already occupy the supported frequency range or impose a different network design.

Trace splitters rather than assuming that every coax outlet connects to every other outlet. Use splitters rated for the adapter’s operating frequencies. An old television splitter may pass cable channels but attenuate the higher frequencies used by a coax networking system. Minimize unnecessary splitters, avoid excessive cascades, and replace damaged or unneeded branches with approved components. A terminator on an unused splitter port can reduce signal leakage, but it does not correct an incompatible splitter or a poor cable run.

Count the required endpoints and select the topology before installation. A simple point-to-point link uses one adapter at the network source and one at the remote device. A multiroom design may use one adapter connected to a router or Ethernet switch and several remote adapters on a supported coax distribution network. Some products support a shared coax LAN; others are designed only for a pair. Confirm the maximum number of nodes and whether the adapters require a dedicated coax segment.

Check power requirements at every endpoint. Most adapters need a local AC outlet or a specified USB power source; coax normally does not power them. Verify the included power supply, voltage, ventilation space, and startup indicators. Select a model whose Ethernet port and coax rating meet the use case. A device advertised with a 2.5-Gbps coax-side rate may deliver substantially less application throughput after protocol overhead, splitter loss, cable quality, and the Ethernet port limit are considered.

Prepare the RJ45 Cable and Pick the Right Ethernet Tool

Use a cable category that matches the network equipment. Cat 5e supports ordinary gigabit Ethernet within the standard copper Ethernet distance, while Cat 6 can provide additional margin and may support higher rates under the right installation conditions. For permanent runs, use solid-copper horizontal cable and terminate it on keystone jacks or a patch panel. Use stranded patch cable with plugs designed for stranded conductors when making short equipment leads.

The appropriate ethernet tool depends on the termination method:

  • RJ45 crimper: Use a crimper matched to the modular plugs and cable type. A pass-through crimper is suitable only for compatible pass-through plugs.
  • Punch-down tool: Use this for keystone jacks and patch panels. Do not force a solid horizontal cable into a plug unless the plug is rated for that conductor and installation method.
  • Jacket stripper and flush cutter: Remove the outer jacket without nicking the twisted-pair insulation, then trim conductors evenly.
  • Wire-map cable tester: Use it to check continuity, pair order, shorts, opens, and crossed conductors on the finished cable.
  • Optional toner and probe: Use these to identify an unmarked cable in a bundle before termination.

Cut each cable slightly longer than the final route so the plug or jack can be remade if a conductor is damaged. Keep the cable away from sharp bends, crushing, mains-power bundles, and fluorescent-ballast wiring. Maintain the cable’s twist as close to the termination as the connector instructions allow. Excessive untwisting increases crosstalk and can cause a link to negotiate below its expected speed.

For a modular plug, slide the cable jacket far enough into the plug that the strain-relief tab grips the jacket rather than only the individual wires. Confirm that all eight conductors reach the front of the plug in the correct order before crimping. A cable tester is useful at this stage, but it verifies the cable’s physical wiring only; it cannot confirm that the coax adapters communicate or deliver their rated throughput.

Wire the Ethernet Pinout in T568A or T568B Order

The Ethernet pinout uses eight contacts arranged as four twisted pairs. T568A and T568B are both valid standards. The important rule is consistency: a straight-through cable uses the same standard at both ends. T568B is common in many new installations, while T568A may be required for an existing structured-cabling system.

Hold an RJ45 plug with the contacts facing up and the latch facing away from the viewer, then count from left to right. The T568B order is:

  1. White-orange
  2. Orange
  3. White-green
  4. Blue
  5. White-blue
  6. Green
  7. White-brown
  8. Brown

The T568A order is:

  1. White-green
  2. Green
  3. White-orange
  4. Blue
  5. White-blue
  6. Orange
  7. White-brown
  8. Brown

The two standards differ only by exchanging the green and orange pairs. Do not use T568A on one end and T568B on the other unless a crossover cable is specifically required. Modern Ethernet ports commonly support automatic crossover detection, but a straight-through cable made to one standard at both ends is the predictable choice for adapter connections.

For a plug, arrange the conductors in order, press them flat without changing their sequence, and inspect the color pattern through the connector before crimping. For a jack or patch panel, place every conductor into the same labeled A or B scheme printed on the hardware and punch it down with the tool specified by the manufacturer. Do not combine the A sequence on one side of a jack with the B sequence on the other.

After termination, run the cable through a wire-map tester. A correct result should show pins 1 through 8 in the expected order, with no open, shorted, reversed, or split pairs. A continuity pass does not prove that the cable meets its category rating, that the Ethernet ports will negotiate at the desired speed, or that the coax conversion will work.

Connect and Test the Converted Link as a Complete System

  1. Connect the coax segment. Attach the source adapter and each remote adapter to the qualified coax outlets or splitter network. Tighten F-connectors firmly by hand and then according to the connector manufacturer’s guidance; avoid twisting the adapter’s coax socket.
  2. Connect the Ethernet segment. Use the tested RJ45 cable between the source adapter and the router or switch. Connect each remote adapter to the target computer, access point, switch, or other Ethernet device.
  3. Apply power and wait for synchronization. Power every adapter with its specified supply. Allow the units time to complete coax discovery, often from several seconds to about a minute. The coax or network indicator should become steady or show the documented connected state.
  4. Check Ethernet link negotiation. Inspect the adapter, switch, router, or computer status page for the negotiated speed and duplex. A link that falls to 100 Mbps when gigabit operation is expected often indicates a bad termination, split pair, damaged cable, unsuitable plug, or a port limitation. Link lights alone do not identify the cause.
  5. Confirm addressing. If the remote device should use automatic addressing, verify that it receives a valid DHCP address, subnet mask, gateway, and DNS information. For static addressing, confirm that both endpoints are on the intended subnet and that no duplicate address exists.
  6. Test local reachability. Ping the local gateway, then ping a device on the far side of the coax link. A gateway response with no remote-device response may indicate a switch, VLAN, firewall, or addressing issue rather than a coax fault.
  7. Measure throughput. Run a wired test between two hosts on opposite ends of the converted link, preferably with a tool such as iperf3. Test in both directions and compare the result with the adapter’s rated Ethernet port and expected coax performance. An internet speed test can be useful afterward, but it also includes the limitations of the internet connection.

Interpret failures by segment. If the wire-map test fails, remake or replace the RJ45 cable before investigating the adapters. If the cable passes but the Ethernet port shows no link, check the port, plug type, power, and adapter status. If Ethernet negotiates correctly but the coax indicators do not synchronize, bypass the splitter with a short known-good coax connection. A direct test that works points to splitter compatibility, coax loss, competing service equipment, or topology. If synchronization works but throughput is poor, remove unnecessary splitters, confirm the negotiated Ethernet rate, test each coax branch separately, and compare results against the adapter’s rated bandwidth rather than its headline physical-layer speed.
